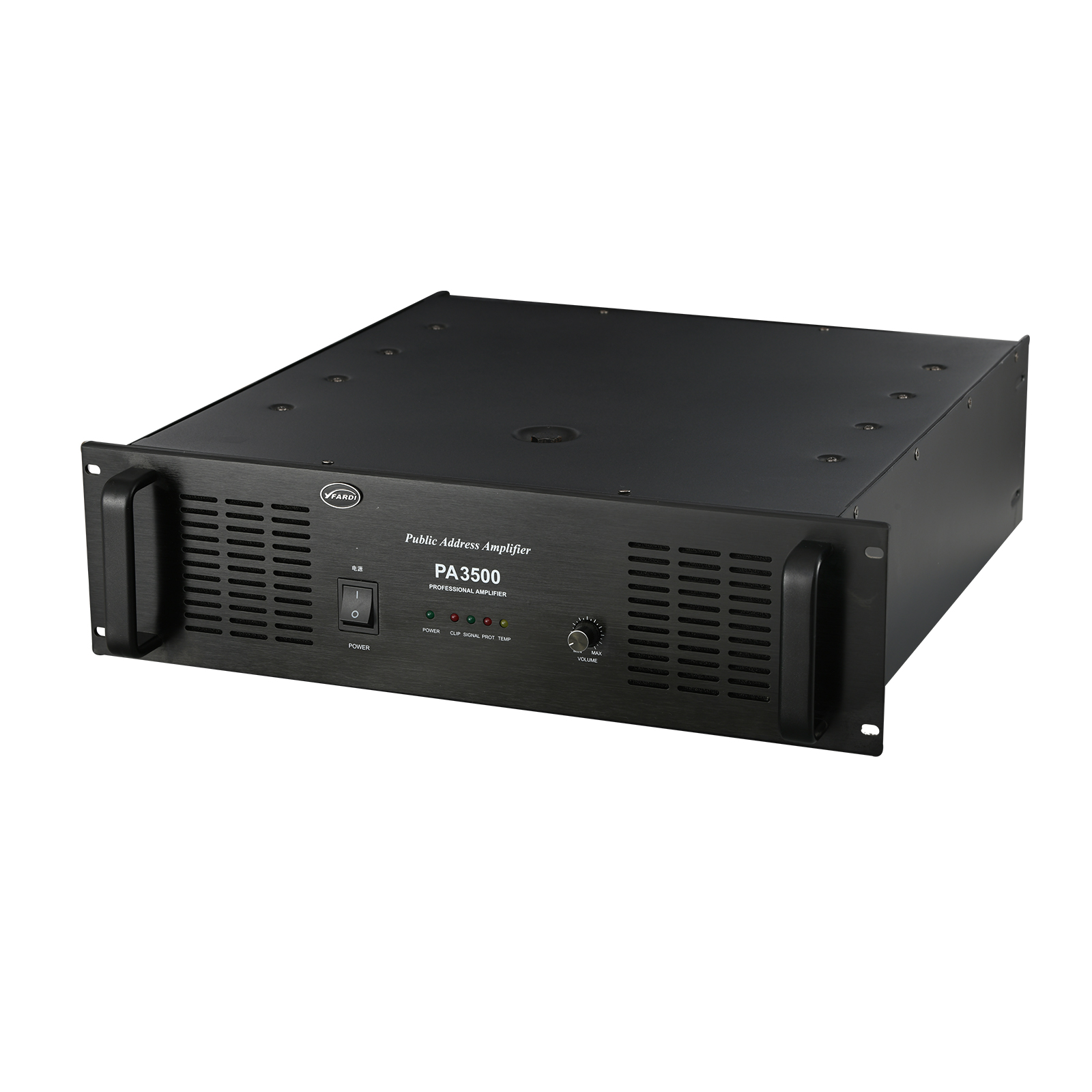

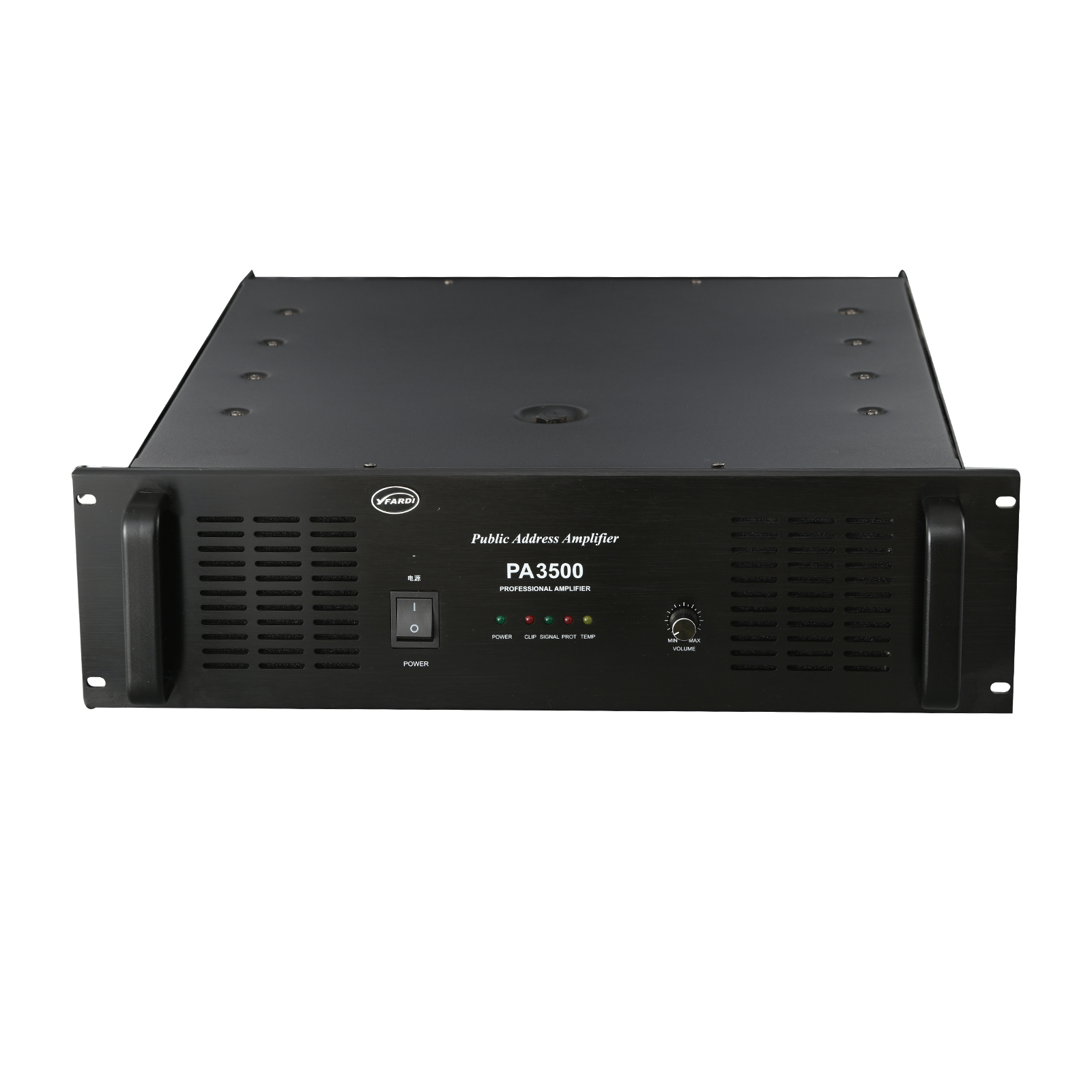

Using an advanced and efficient power amplification circuit, it delivers strong power output and excellent load-handling capability. It features one audio input with independently adjustable volume, voltage output of 70V/100V, fixed impedance output of 4-16Ω, output power of 2000W, and output frequency response of 100~16KHz. The device comes with abnormal operation protection and warning functions: when the input signal is too high, the load is too heavy, the temperature is too high, or there are circuit issues, the corresponding indicator lights will alert you, offering high reliability. It has a 3U standard chassis design with an aluminum panel, both stylish and practical.
Model: PA3500
Rated Output Power: 2000W
Input Sensitivity: 0dBV
Rated Output Voltage: 70V, 100V (MP4000: 200V)
Signal-to-Noise Ratio: >90dB
Effective Frequency Range with Gain Limitation: 80Hz-15kHz (±3dB)
Total Harmonic Distortion: <0.5% (1kHz, 1/3 rated power)
Indicator Lights: "Power," "Clip," "Signal," "Protection," and "Overheat"
Protection Functions: Power-on, high temperature, DC, short circuit
