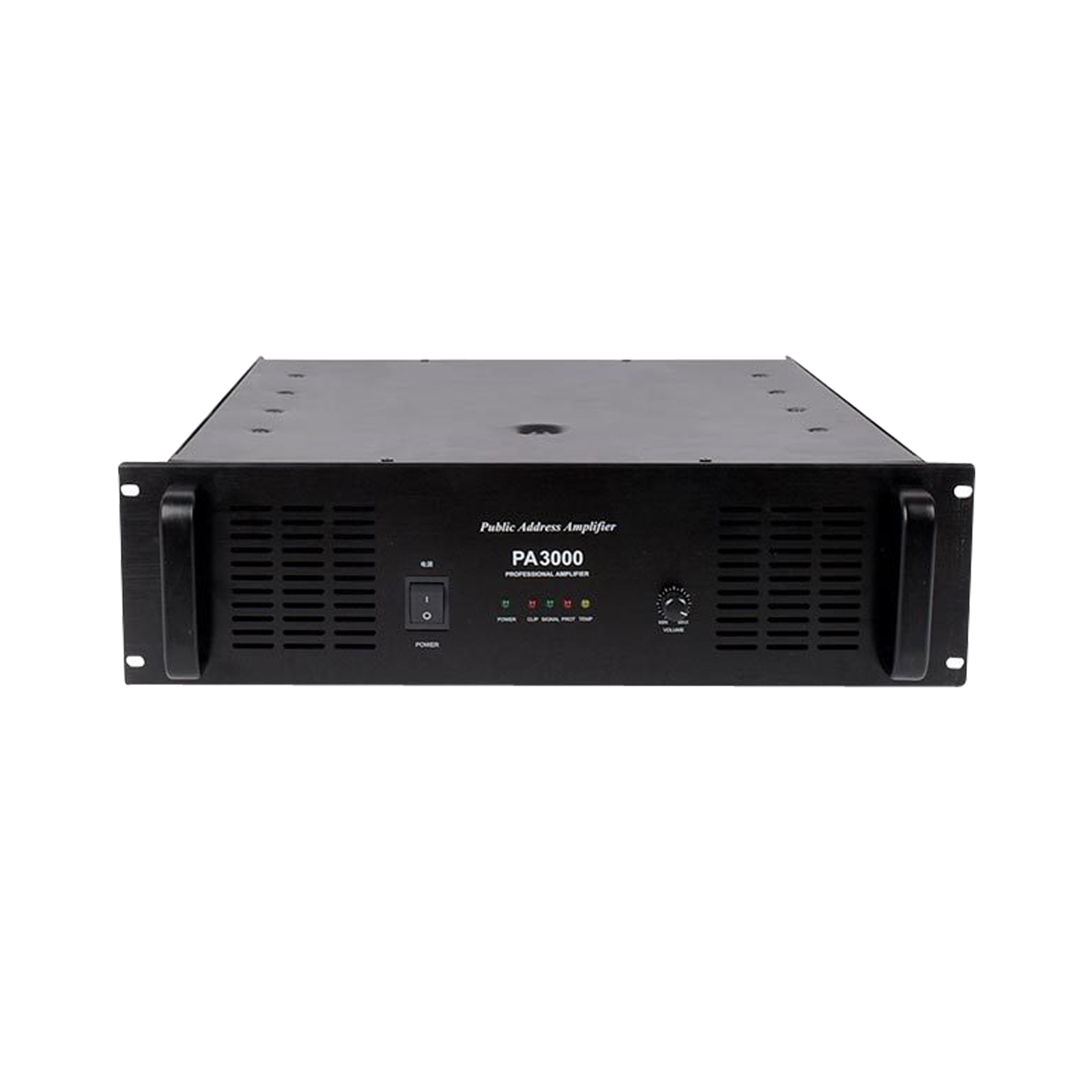

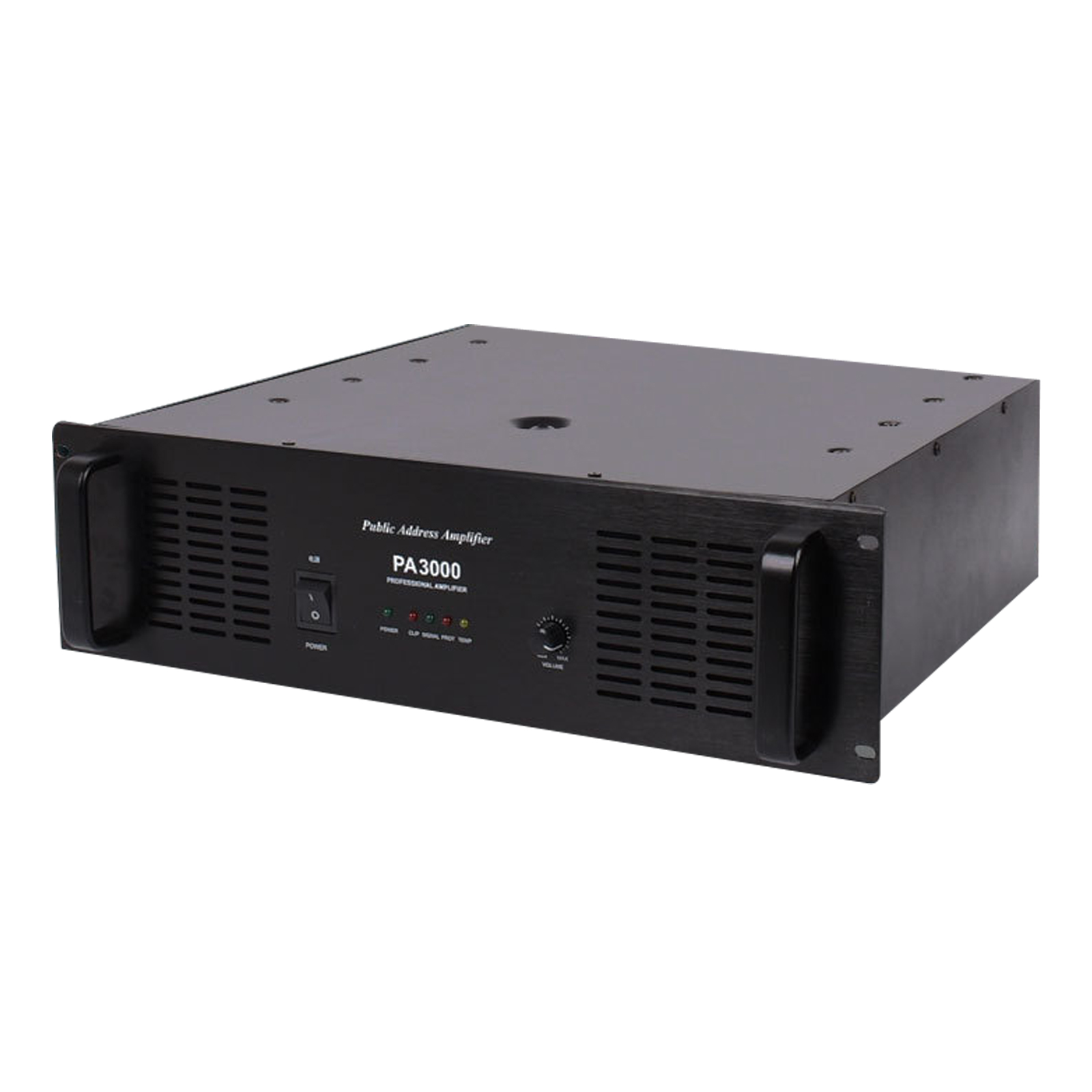

Using an advanced and efficient power amplifier circuit, this device delivers strong power output and excellent driving capability. It has one audio input with independently adjustable volume. The voltage output is 70V/100V, and the fixed impedance output ranges from 4-16Ω. The output power is 1500W, and the output frequency response is 100~16KHz. The device features abnormal operation protection with warning indicators for cases such as excessive input signal, heavy load, high temperature, or line circuit problems, offering high reliability. It comes in a 3U standard chassis with an aluminum panel that's both stylish and practical.
Model: PA3000
Rated Output Power: 1500W
Input Sensitivity: 0dBV
Rated Output Voltage: 70V, 100V (MP4000: 200V)
Signal-to-Noise Ratio: Over 90dB
Effective Frequency Range with Limited Gain: 80Hz-15kHz (±3dB)
Total Harmonic Distortion: Less than 0.5% (1kHz, 1/3 rated power)
