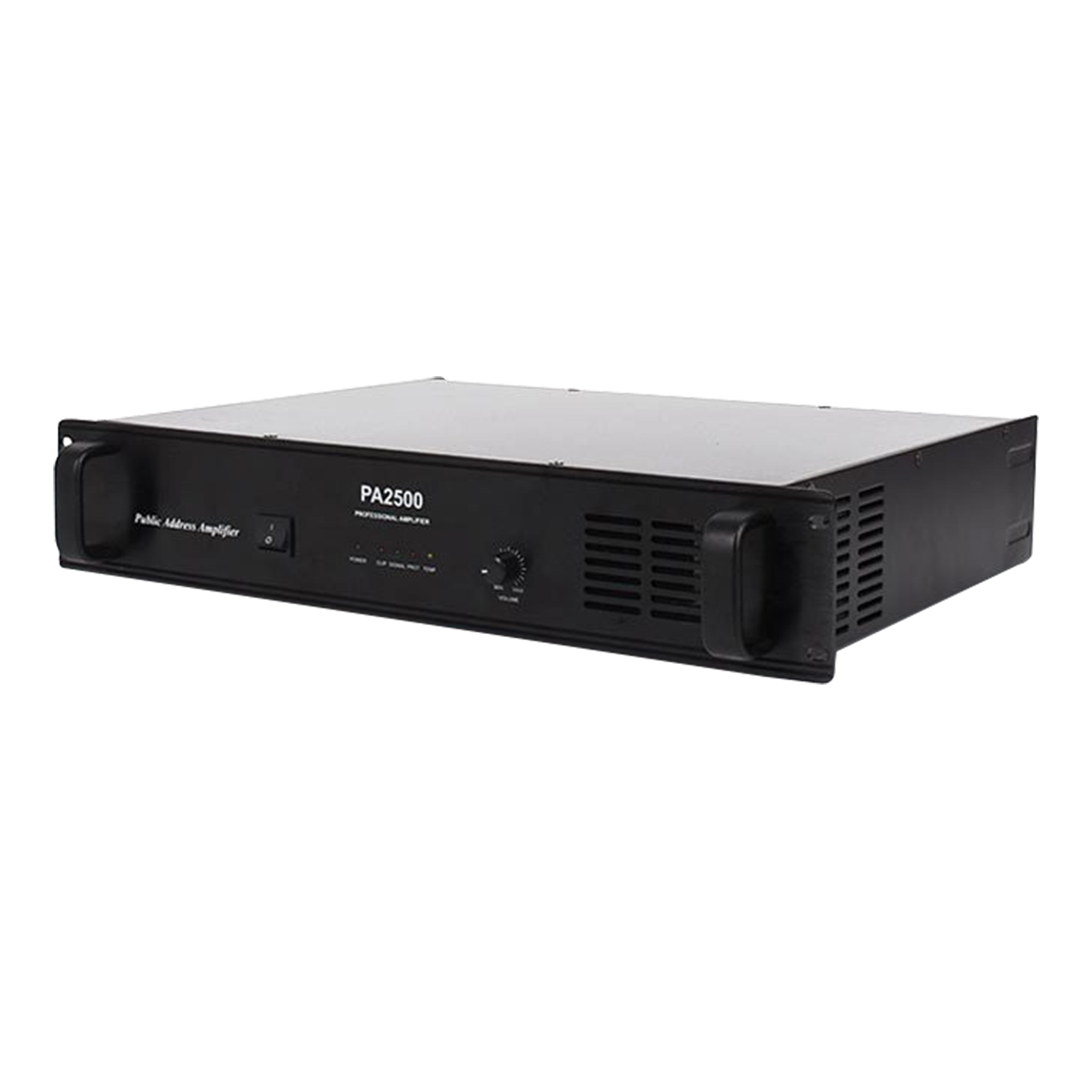

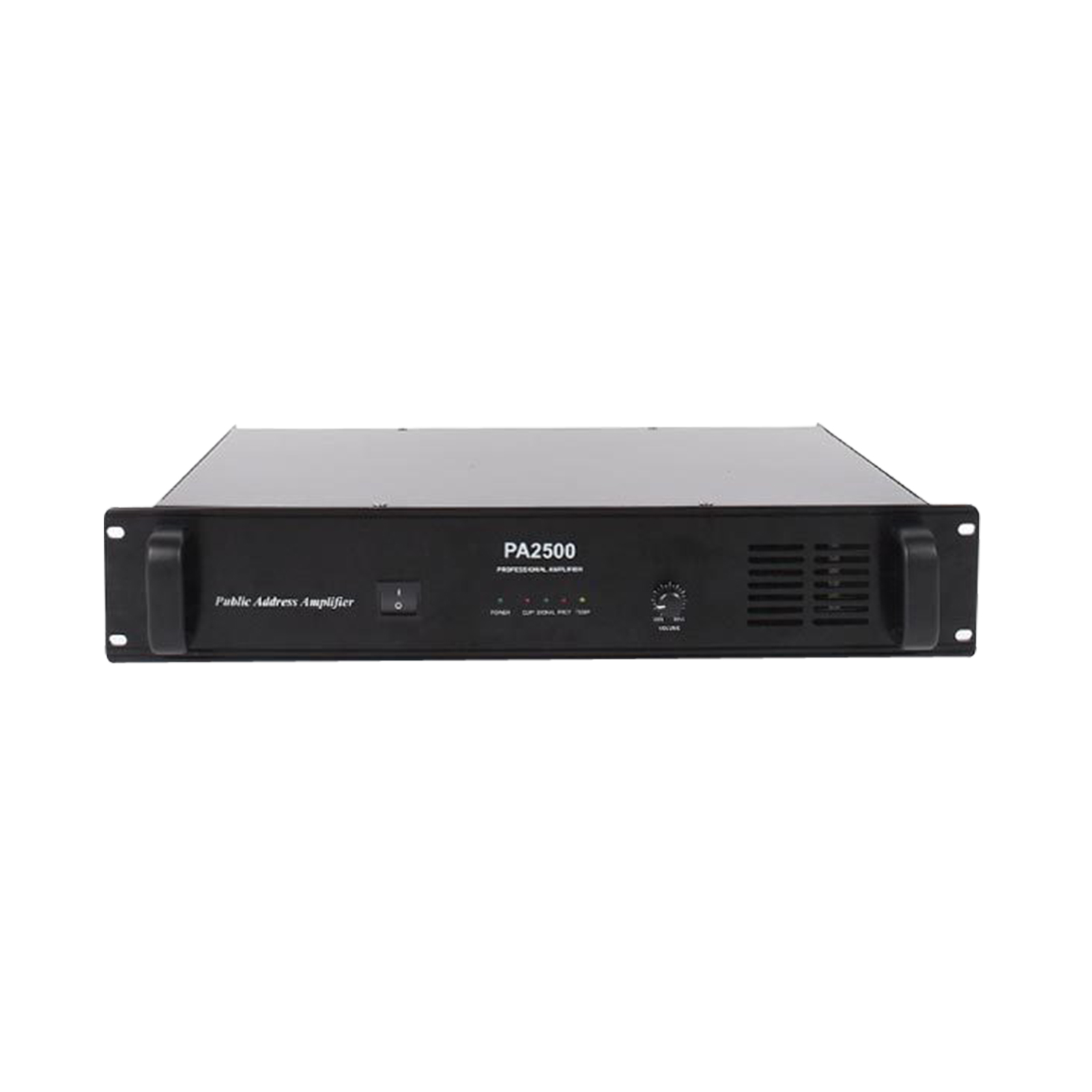

Using advanced and efficient power amplification circuits, it delivers strong power output and excellent load handling. It features one audio input with independently adjustable volume. Voltage output is 70V/100V, and fixed impedance output is 4-16Ω. Output power is 1000W, with a frequency response range of 100~16KHz. The device has an abnormal operation protection warning function: when the input signal is too strong, the load is too heavy, the temperature is too high, or there is a circuit issue, the corresponding indicator light will alert you, making it highly reliable. It comes in a 2U standard chassis design with an aluminum panel, combining aesthetics and practicality.
Model: PA2500
Rated Output Power: 1000W
Input Sensitivity: 0dBV
Signal-to-Noise Ratio: >80dB
Damping Factor: 200:1
Common Mode Rejection: >90dB
Frequency Response: 50Hz-15kHz (±3dB)
Total Harmonic Distortion: 4W/1kHz <0.3%
Slew Rate: >15V/µs
Indicator Lights: “Power”, “Clip”, “Signal”, “Protect”, and “Overheat”
