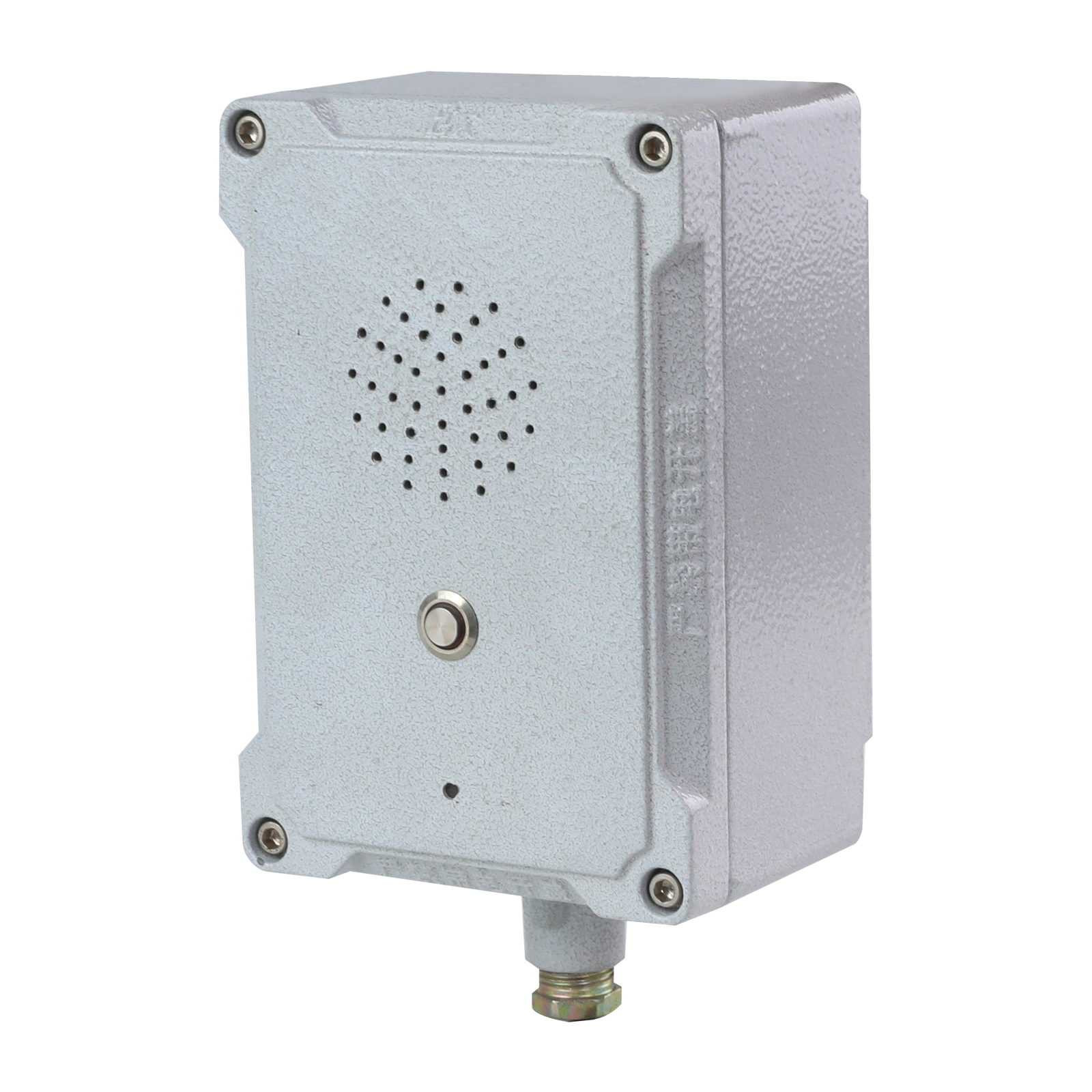

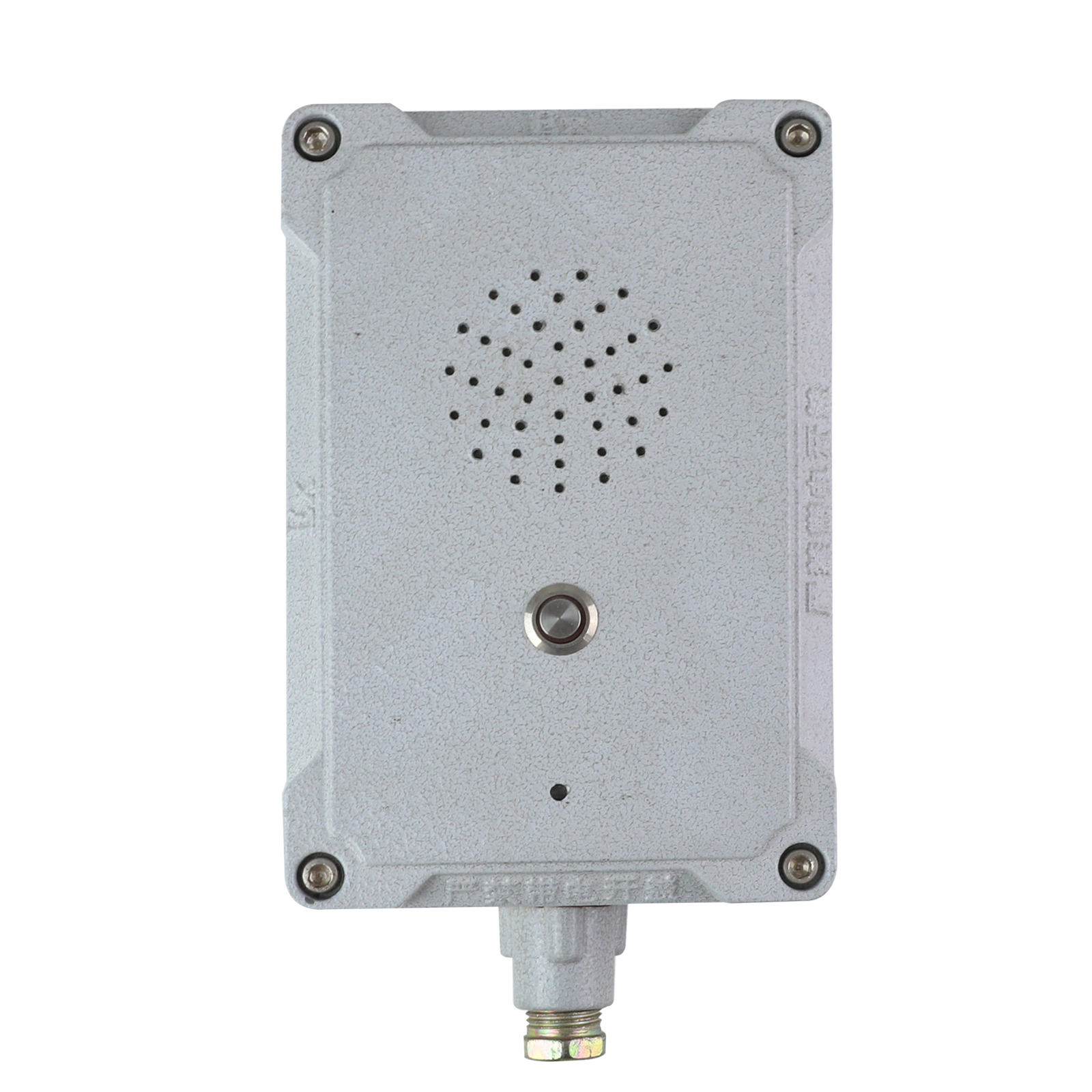

Explosion-proof intercom terminal YD-12S
- Compatible with standard SIP (RFC3261) protocol, can connect to mainstream IP PBX/IMS platforms
- Uses H.264 encoding *The device comes in an aluminum alloy explosion-proof casing and can optionally be mounted on a vertical pole.
- * Internally equipped with one line audio input and one line audio output, suitable for emergency calls and special amplification in places like safe city areas and tunnels.
- * Built-in media playback software for supporting use;
- * The panel has a high-sensitivity intercom microphone, making it easy for the person in need to have a conversation.
- * Equipped with a 5W speaker so that the person needing help can hear the intercom even in noisy and chaotic road environments.
- * Internally equipped with a fixed 8Ω/30W (can be custom 60W) digital amplifier to meet power amplification needs in different scenarios like roads or tunnels. Optionally, external high-fidelity passive speakers or long-distance horns can be connected.
- * Both the module and background music module use Class D digital amplifiers with independent switch-mode power supply. It stays muted when there is no broadcast or emergency call, making the device quieter with less heat.
- * Internally equipped with a DC12V controllable power supply for driving warning lights and other alerting devices.
- * Internally equipped with a high-quality TCP/IP network module
- Protection level: IP65;
- Network interface: RJ45;
- Network transmission rate: 100Mbps;
- Supported protocols: RTP, UDP, TCP/IP, FTP;
- Audio formats: MP3/WAV;
- Audio quality: 16-bit CD quality;
- Sampling rate: 8K–41.8KHz;
- MIC input sensitivity: 10mV;
- Frequency response: 317Hz–3.4KHz;
- Total power consumption: 10W;
- Total harmonic distortion THD: ≤10%;
- Signal-to-noise ratio: ≥80dB;
- Operating temperature: -20℃–60℃;
- Operating humidity: 20%–80% RH, no condensation;
- Input power: DC12V;
- Dimensions: 230*230*110mm;
- Weight: 1.7Kg;
SKU:
YD-12S
Category: SIP Converged Network Intercom System
