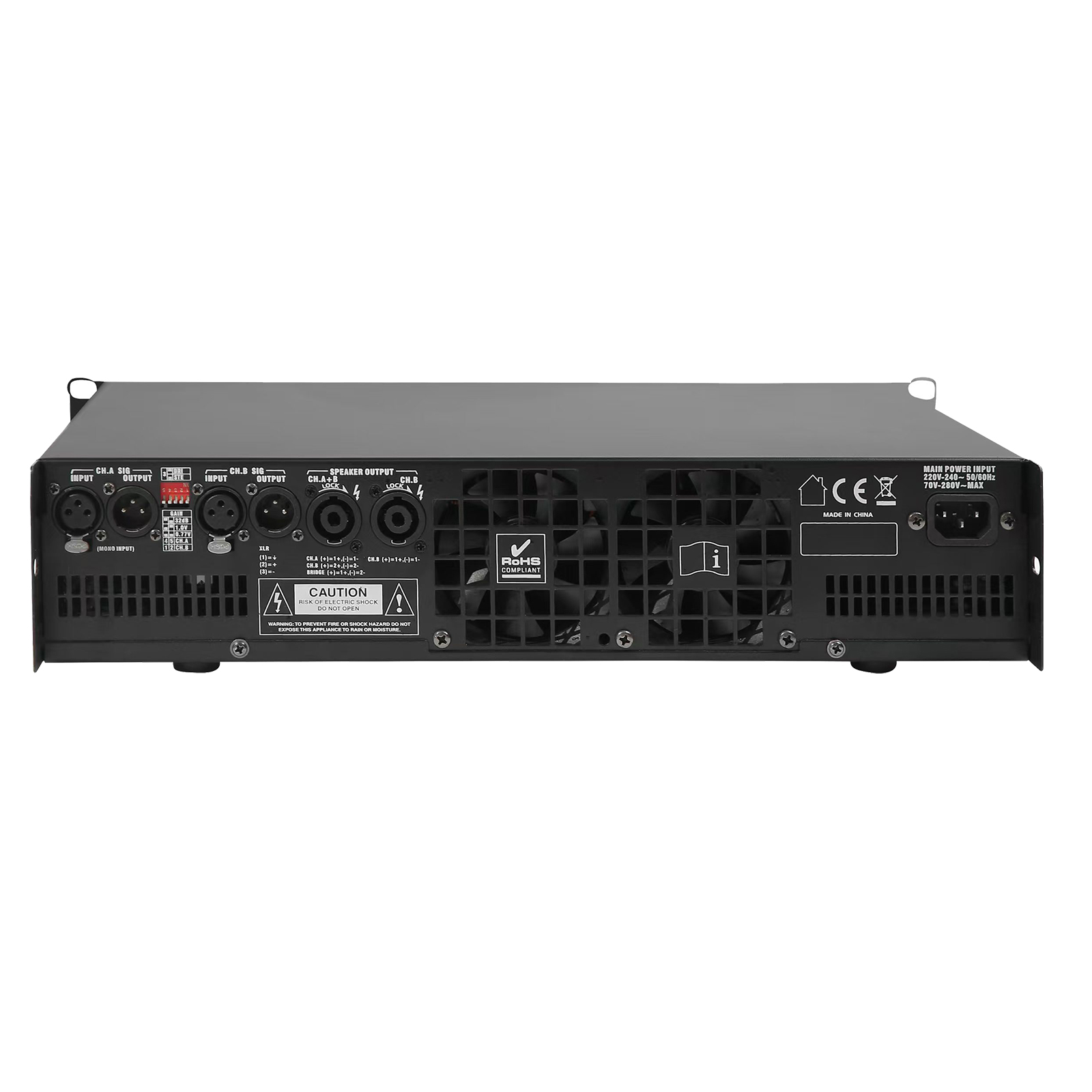

digital amplifier A-01

  • Model: A-01 Power Amplifier
  • Output Power (8Ω): 2×300W
  • Output Power (4Ω): 2×420W
  • Bridge 8Ω (output power): 700W
  • Input Sensitivity: 0.775V/1.2V
  • Input Impedance: 20KΩ (balanced, parallel)
  • Frequency Response: 20Hz-34KHz (0.3dB)
  • Slew Rate: ≥30V/µs
  • Damping Factor: >400:1 (@1KHz)
  • Signal Crosstalk: >90dB (@1KHz)
  • Signal-to-Noise Ratio: >112dB
  • Total Harmonic Distortion: <0.1% @1KHz
  • Intermodulation Distortion: <0.1% @ 8Ω 1KHz 1W
  • Power Supply: 220V/50Hz-60Hz
  • Dimensions: 483×88×240 mm
  • Gross Weight: 6.4KG
  • Features: Balanced level adjustment, front panel potentiometer, from negative infinity to 0dB. Cooling method: stepless speed fan, airflow front-right to rear. Amplifier uses a 3.2-inch color screen to display volume and level.
  • Amplifier Protection: Short circuit, open circuit, DC voltage, overheat, RF, ultra-low frequency protection.
